Node Based AI: How Visual Workflows Actually Work

Quick answer

Node based AI is a way of building creative work as a connected map of steps rather than a single prompt. Each node handles one job, such as generating an image, upscaling it, or replacing a color, and the output of one node feeds the next. Because the map stays on the canvas, you can change one input and rerun the entire chain instead of starting over. FLORA, Figma Weave, Krea Nodes, and ComfyUI lead the category, and FLORA is the option built for teams that want the full model library and the workflow in one place.

Most people meet generative AI through a text box. You describe something, you get an image back, and if it is wrong you describe it again. That loop is fine for a single picture. It falls apart the moment you need forty product shots in the same lighting, or a campaign that has to run in six languages, or a look you developed on Tuesday and need again in November.

The fix that professional teams have converged on is not a better prompt. It is a different shape of tool. Instead of one box that forgets everything, you lay the work out as a graph: a node for the reference image, a node for the model, a node for the upscale, a node for the color swap. The graph is the thing you keep. Change the reference, and every step downstream updates.

This guide covers what the nodes actually do, what the leading tools are good at, and three worked examples of real production workflows. FLORA is our own product, and we have put it first in the tools section, so read that part with the appropriate skepticism. Everything else here is the honest state of the category. If you want to follow along on a canvas while you read, you can start with FLORA free.

What node-based AI actually means

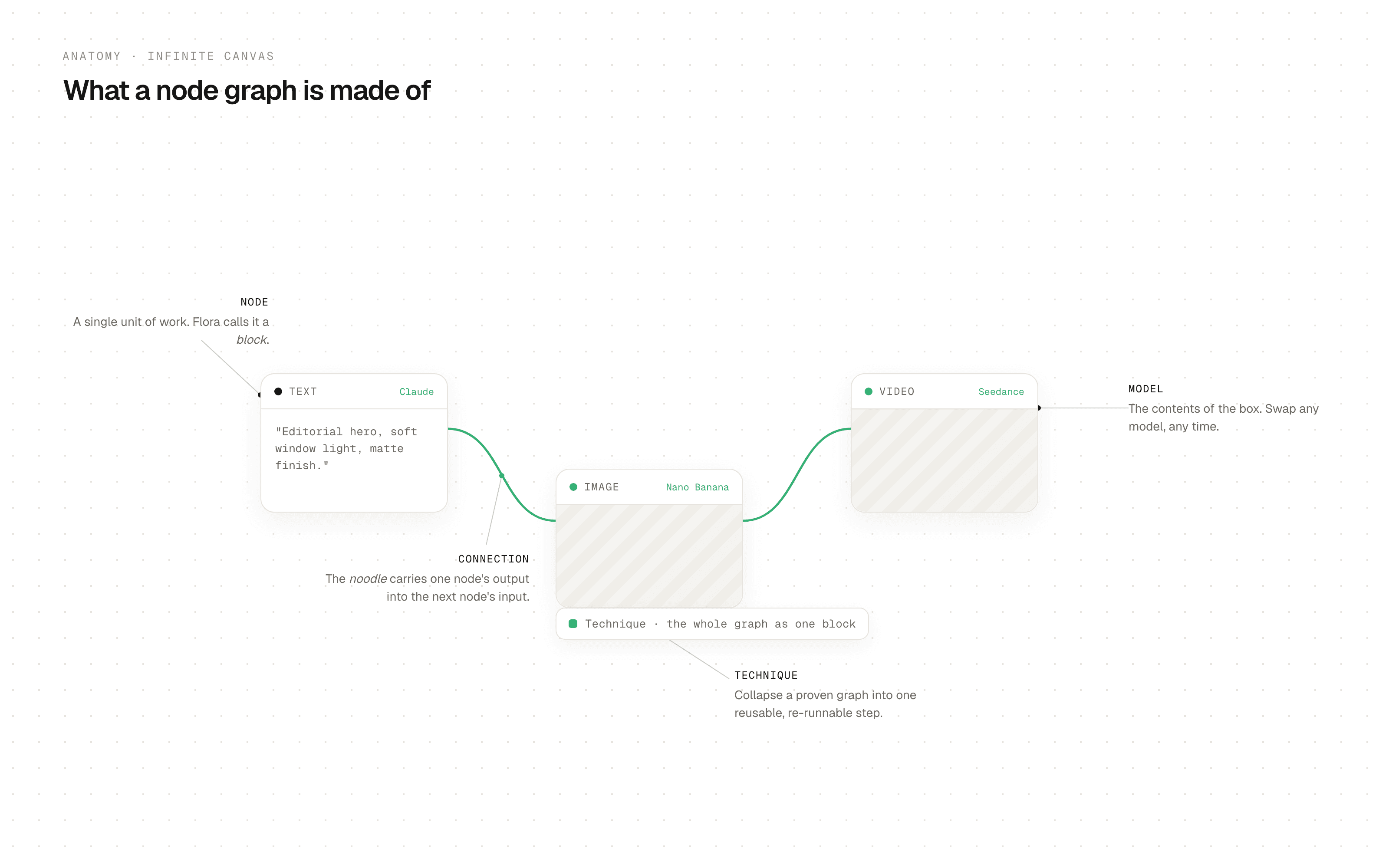

A node is a single operation with inputs on one side and outputs on the other. One node might hold a prompt. Another loads a reference image. Another calls a specific model. Another crops, upscales, or relights the result. You draw a line from one to the next, and that line carries the data.

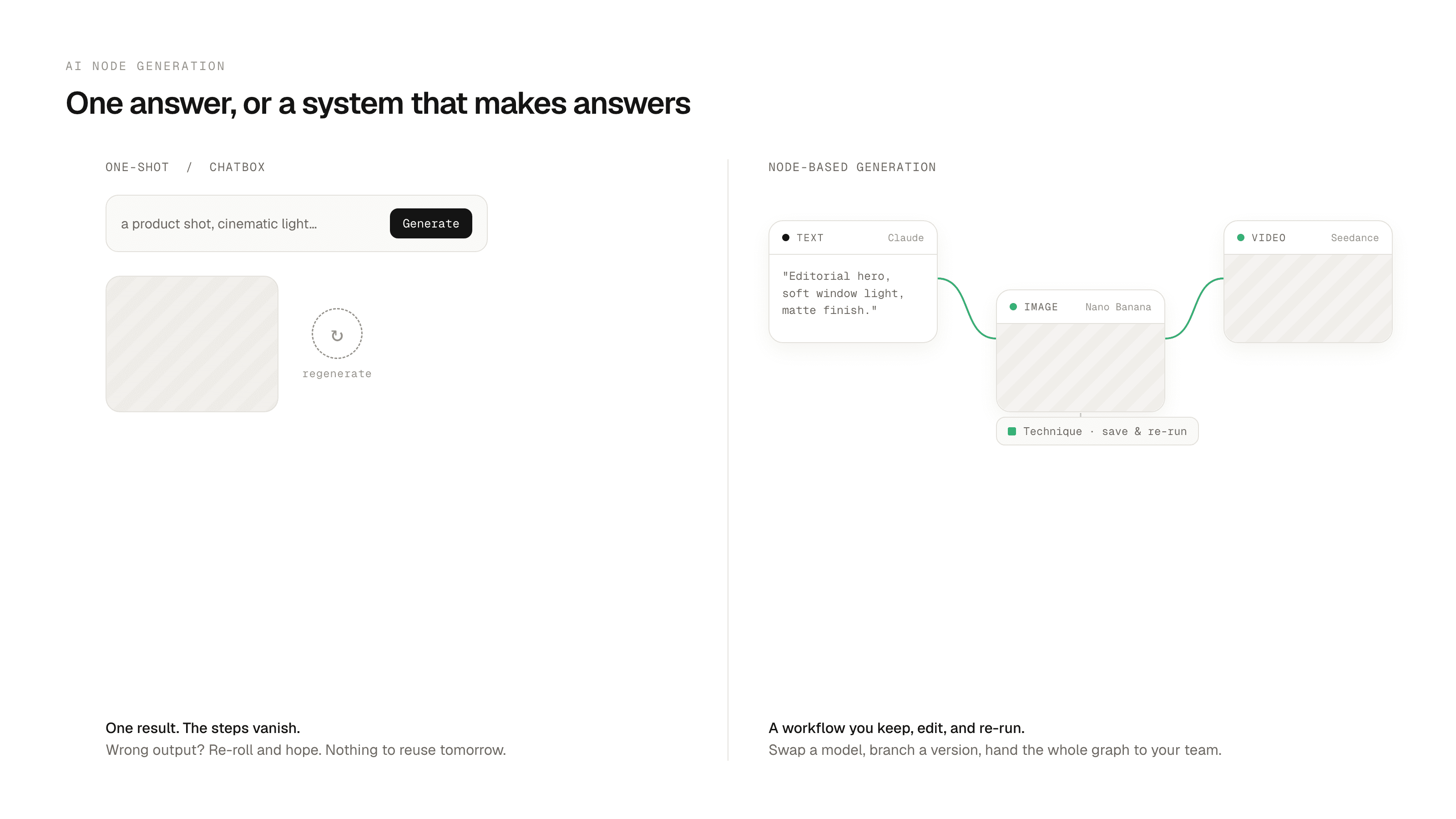

Put four or five of them in a row and you have stopped making requests and started describing a process. The distinction matters more than it sounds. A prompt is a one-time instruction that disappears when you close the tab. A graph of AI nodes is a record of how something was made, which means it can be inspected, corrected at any point, handed to a colleague, and run again next quarter with new inputs.

Three properties fall out of that structure:

• You can change one thing. In a chat interface, a small correction means rewriting the whole prompt and accepting a completely new image. In an AI node editor, you edit the one node that was wrong and the rest of the chain holds steady.

• You can see the failure. When output looks bad, the graph shows you which step broke it. That white-box visibility is the main reason technical directors like the format.

• You can mix models. A single AI node calls a single model, so nothing stops you generating with one model, upscaling with a second, and animating with a third inside the same pass.

That last point is the one people underestimate. No single model is best at everything, and the gap between them shifts every few weeks. Node based generative AI treats models as interchangeable parts, which is what lets the workspace outlast whichever model is currently ahead.

Why the idea moved from VFX into AI

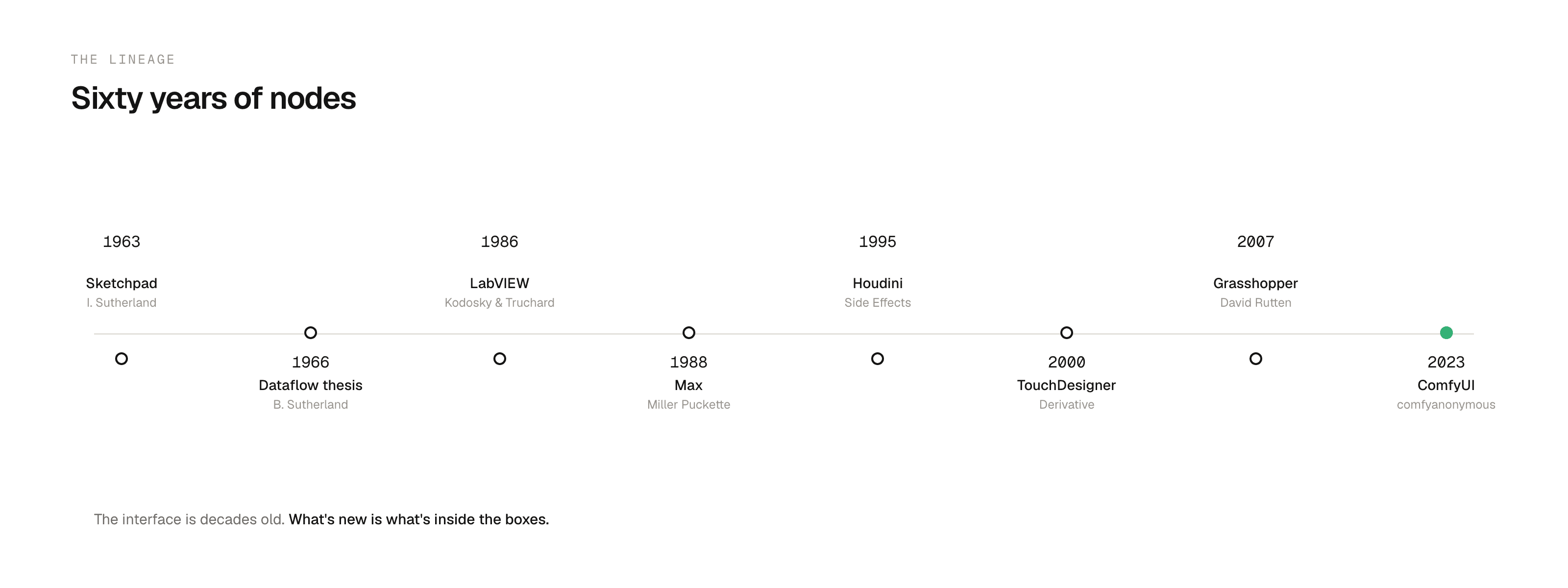

Node graphs are not new. Compositors have worked this way for decades in Nuke, and 3D artists in Blender and Houdini build materials and geometry the same way. The reason is not aesthetic. It is that high-end visual work involves dozens of dependent steps, and any system that hides those steps becomes impossible to debug or hand off.

Generative AI hit the same wall quickly. Once teams moved past single images into series, variations, and video, the text box stopped scaling. ComfyUI proved the point in the open-source world by making a node based image generator that serious hobbyists preferred to simpler interfaces, despite a genuinely difficult learning curve.

What changed recently is that the format stopped being a specialist concession. Figma acquired Weavy in October 2025 and relaunched it as Figma Weave. Krea shipped Nodes. FLORA built its whole product around a canvas. When the design tool most teams already pay for adopts the graph, the graph is no longer a niche.

What a node based workflow actually looks like

Category explainers tend to stop at the diagram. Here are three chains that map to real work, with each step linked to the technique that performs it.

From a moodboard to a finished brand campaign

The first stretch is exploration, and it is the part teams usually rush. Start by building the reference set with a moodboard maker, then run palette pull on the boards you liked to extract the exact colors instead of eyeballing them. Those colors become an input node that everything downstream inherits, which is how you get consistency without a style guide argument.

From there the graph branches. One branch generates marks and monograms through sigil; another produces a matching icon pack so the system has more than a logo. Once the core is approved, brand extension pushes the identity into the formats nobody budgets time for, and auto translate handles the localized versions in the same pass. If the campaign needs social proof, UGC creation generates creator-style variants off the same approved assets.

The value is not any single step. It is that when the client changes the primary color in week three, you edit one node.

From a single product shot to a full catalog

Product work is where the economics get obvious, because the alternative is a photo shoot. Begin with a clean studio shot and add depth with studio blur so the result reads like photography instead of a render.

Then the chain multiplies. Product recolor generates every colorway from the one shot, image recolor handles broader palette changes, and texture matchers swaps materials while keeping the lighting intact. Apparel teams can run print pattern replacement to try prints without sampling, or start further upstream with sketch to garment and turn a flat drawing into a photographed piece. When the product needs context, room render places it in a believable interior.

One shoot, one graph, and a catalog that stays consistent because every image descends from the same source node.

From a script to a cut sequence

Video is the hardest thing to iterate on, which makes the graph most valuable here. Block the sequence first with a storyboard maker, so the expensive generation happens against an agreed plan. Build the environments with a video scene builder, generate the footage with the cinematic movie generator, and join the shots using seamless transition instead of fighting continuity in the edit.

Choosing which model to generate with is its own decision, and we broke it down separately in our guide to the best AI video generators. Any serious node based AI video generator setup will let you swap that model without rebuilding the rest of the sequence.

Product teams run the same pattern for interface work, starting from a wireframe and generating states from there.

The node based AI tools worth knowing

Seven platforms matter right now. They are not interchangeable.

FLORA is an AI-powered canvas built for designers, brand teams, and agencies, running 50+ text, image, video, and audio models in one workspace under an Ideate, Iterate, Scale structure. Nodes are called blocks and the connections between them are called noodles. Alongside the media blocks sit operational ones: Batch to run a single look across hundreds of assets, Action blocks for grading, trimming, background removal and upscaling, plus Code, Router, and Switch. The distinguishing feature is Techniques: an entire graph collapsed into one reusable block, built by FLORA and by working creators, that you can run instantly or open on your canvas and modify. That is what the three examples above are. FAUNA, the in-canvas agent, reads your board and wires a graph for you while you steer. Pentagram, Lionsgate, and Shopify are among the teams using it. There is a free tier, and larger organizations can talk to us about enterprise.

Figma Weave is the former Weavy, acquired by Figma in October 2025. It pairs generation with genuine editing controls on an open canvas and carries the advantage of sitting next to a tool most design teams already use. If you are weighing the two, we wrote a direct Figma Weave comparison.

Krea Nodes extends Krea's generation tools into chaining. It is capable without being punishing, and a reasonable entry point for individuals. See our Krea comparison for the detail.

ComfyUI is the open-source reference implementation and still the most flexible thing available. It is also self-hosted, dependent on your own GPU, and steep enough that many teams try it once and retreat. Our ComfyUI alternatives page covers who should stay and who should not.

Higgsfield offers a node canvas oriented toward video, covered in our Higgsfield comparison. NodeTool is an agent-first open workspace aimed at more technical users. Freepik Spaces suits teams that want speed and a large stock ecosystem more than fine control.

Where node-based AI still struggles

Three honest limitations, because anyone who tells you the graph solves everything has not shipped on one.

Graphs get ugly. A workflow that made sense with eight nodes becomes unreadable at sixty. Naming and grouping discipline is real work, and most tools are still weak at it.

Version control barely exists. Comparing two versions of a graph is nothing like comparing two versions of a document. If two people edit the same workflow, resolving that is manual.

The learning curve is front-loaded. The payoff arrives on the second and third use, not the first. For a genuine one-off, a text box is still faster, and pretending otherwise wastes people's time.

How to choose

Pick by the work, not the feature list. If you produce one image occasionally, you do not need any of this. If you produce series, variations, or anything that has to stay on brand across months, the graph pays for itself quickly.

If you are technical, own a good GPU, and want maximum control, ComfyUI is still the deepest option. If your team lives in Figma and mostly needs generation beside existing design work, Figma Weave is the path of least resistance. If you need many models, reusable processes, and several people working on the same canvas without anyone maintaining an install, that is the case FLORA is built for.

Getting started without building anything

The fastest way in is to run someone else's graph before you build your own. FLORA's Techniques library is organized by job, from brand and product visualization through video, and every technique opens on the canvas so you can see the wiring and change it. The range runs from production workhorses to genuinely playful experiments like doodlify and wonder-fy, which are a low-stakes way to learn how connections behave.

From there, the deeper capabilities sit behind the AI image generator and AI video generator pages.

Frequently asked questions

What are node based AI tools, in simple terms?

They arrange generative AI as a flowchart. Each box does one job, lines connect them, and the whole chain can be rerun with new inputs. Instead of asking for a finished result in one sentence, you build the path to it once and reuse it.

Is node-based AI better than just prompting?

For repeated work, clearly. For a single image, no. The graph earns its cost through reuse, so the honest test is whether you will run this process more than twice.

Do I need to code to use a node based AI tool?

No. Every major platform is drag-and-connect. ComfyUI expects more technical comfort because it is self-hosted, but connecting nodes is not programming in any of these tools.

What is the difference between a node based workflow and an automation tool like Zapier?

They share a visual metaphor and almost nothing else. Automation platforms move data between business applications. An AI node based workflow produces creative output, and its hard problems are model selection and visual judgment, which have very little to do with API plumbing.

Can I use different models in the same graph?

Yes, and that is the main argument for the format. A single canvas can generate with one model, upscale with another, and animate with a third. Tools that lock you to one model give up the biggest advantage of the structure.

How many nodes does a typical workflow need?

Useful ones are often five to fifteen. Very large graphs usually signal that the work should be split into several reusable techniques instead.
